Configuration of the CI/CD environment.

Safe runs on different CI/CD providers (Github actions, CircleCI, SemaphoreCI and Jenkins). It uses a docker image which makes it easier to integrate with other providers.

Define the CI/CD Job

Make sure to place the configuration config.json file (which was created during the setup of the project with the cli ) in the root of the repository under the .safe folder. For more information about the config.json file please visit this page.

In your CI/CD pipeline, define a job specifically for SAFE (e.g: security-check). This job will manage the analysis process by referencing the configuration created in the CLI setup

warning

Make sure to run a compilation job before defining the security-check CI job. SAFE needs to have the BEAM files to be able to run the analysis. The environment you compile your project on should be the same as the one during the setup of the project i.e: prod, test, dev.. etc You should compile the codebase with the debug_info flag.
In case of a Rebar3 or Mix project (Elixir), this option is enabled by default.

tip

To be able to persist the results, you need to add a new entry in your .safe/config.json under the output section with a file entry.

Here is an example definition for github actions, CircleCI, SemaphoreCI and Jenkins.

Github actions

config.yml

name: Erlang CI

on:
  push:
    branches: [ "main" ]
  pull_request:
    branches: [ "main" ]

permissions:
  contents: read

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - uses: erlef/setup-beam@v1
        with:
          otp-version: '26'
          rebar3-version: '3.24.0'
      - name: Compile
        run: rebar3 compile

      - name: Upload _build directory
        uses: actions/upload-artifact@v4
        with:
          name: build-artifact
          path: _build

  security-check:
    runs-on: ubuntu-latest
    needs: build
    container:
      image: erlangsolutions/safe:1.1.0-otp-26
    steps:
      - uses: actions/checkout@v4
      - name: Download _build directory
        uses: actions/download-artifact@v4
        with:
          name: build-artifact
          path: _build
      - run: safe start
        env:
          SAFE_LICENSE: ${{ secrets.SAFE_LICENSE }}
      - name: Persist results
        if: always()
        uses: actions/upload-artifact@v4
        with:
          name: project-safe-results
          path: _results/<<Project_Name>>.safe

CircleCI

config.yml

security-check:
    resource_class: medium
    docker:
    - image: erlangsolutions/safe:1.1.0-otp-26
    working_directory: /repo
    steps:
    - checkout
    - attach_workspace:
        at: /repo
    - run:
        command: safe start
        no_output_timeout: 1h
    - store_artifacts:
        path: /repo/_results/<<Project_Name>>.safe

SemaphoreCI

config.yaml

version: v1.0
name: Erlang
agent:
  machine:
    type: e2-standard-2
    os_image: ubuntu2004
blocks:
  - name: build
    task:
      jobs:
        - name: compile
          commands:
            - rebar3 compile
      env_vars:
        - name: MIX_ENV
          value: test
    dependencies: []

  - name: Security Check
    dependencies: []
    task:
      jobs:
        - name: 'Job #1'
          commands:
            - checkout
            - 'docker run -v $(pwd)/_results:/safe/_results -v /home/semaphore/<<Repository>>:/<<Repository>> --env SAFE_LICENSE="$SAFE_LICENSE" --env SAFE_CI_CONFIG_PATH="/<<Repository>>/.safe/config.json" erlangsolutions/safe:1.1.0-otp-26'
            - artifact push job _results/<<Project_Name>>.safe
      secrets:
        - name: SAFE_LICENSE

To create and use secrets in SemaphoreCI please visit the documentation.

Jenkins

Jenkinsfile

pipeline {
    agent none

    options {
        ansiColor('xterm')
    }

    parameters {
        string(name: 'DOCKER_NAME', defaultValue: 'safe', description: 'Docker image to use for compile stage')
    }

    stages {
        stage('Compile') {
            agent {
                docker {
                    image 'erlang:26.2.1'
                    args '-u root'
                }
            }
            steps {
                sh 'rebar3 compile'
            }
        }

        stage('Archive Build') {
            agent any
            steps {
                stash includes: '_build/**', name: 'build-artifact'
            }
        }

        stage('SAFE Security Check') {
            agent {
                docker {
                    image "${params.DOCKER_NAME}"
                    args '-e SAFE_LICENSE'
                }
            }
            steps {
                sh 'echo "SAFE_LICENSE=$SAFE_LICENSE"' // for debug (optional)
                sh 'safe analyse'
            }
        }

    }

    post {
        always {
            echo 'Pipeline finished.'
        }
        success {
            echo 'Build and tests succeeded!'
        }
        failure {
            echo 'Something went wrong...'
        }
    }
}

Gitlab CI

The following example shows how to use SAFE in Gitlab CI/CD.

config.yml

stages:
- build
- test

build-job:
  stage: build
  image: erlang:24
  script:
  - rebar3 compile
  artifacts:
    paths:
    - _build/
    expire_in: 1h

esl-safe-check:
  stage: test
  image: erlangsolutions/safe:1.1.0-otp-26
  script:
  - safe start
  dependencies:
  - build-job

important

The minimum system requirements for the CI machine are 2 CPUs and 4GB of RAM.

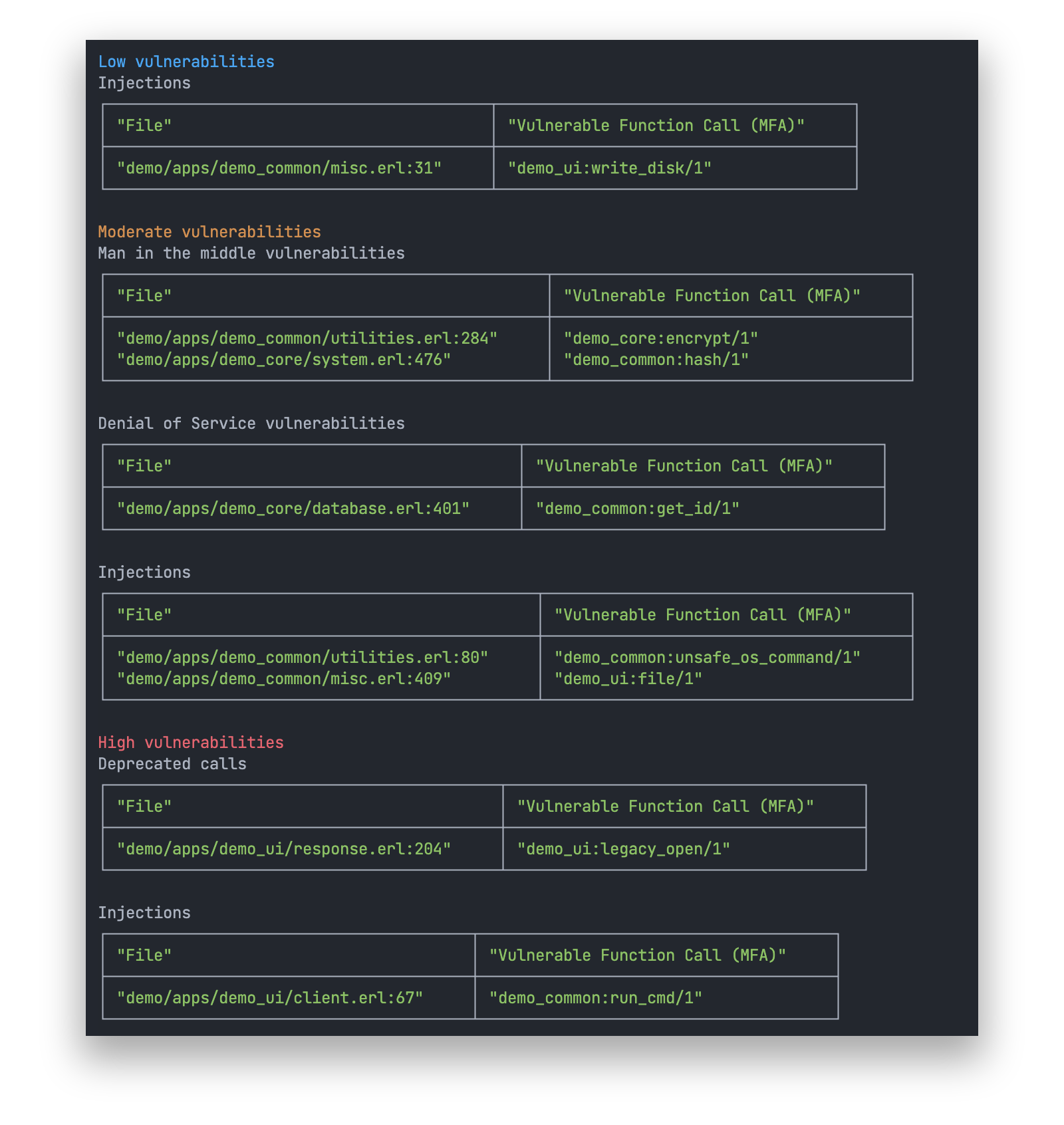

Example result in the CI/CD output:

info

The CI job will terminate with exit code 1 in case SAFE finds vulnerabilities.
